Typical Architecture Selection Guide¶

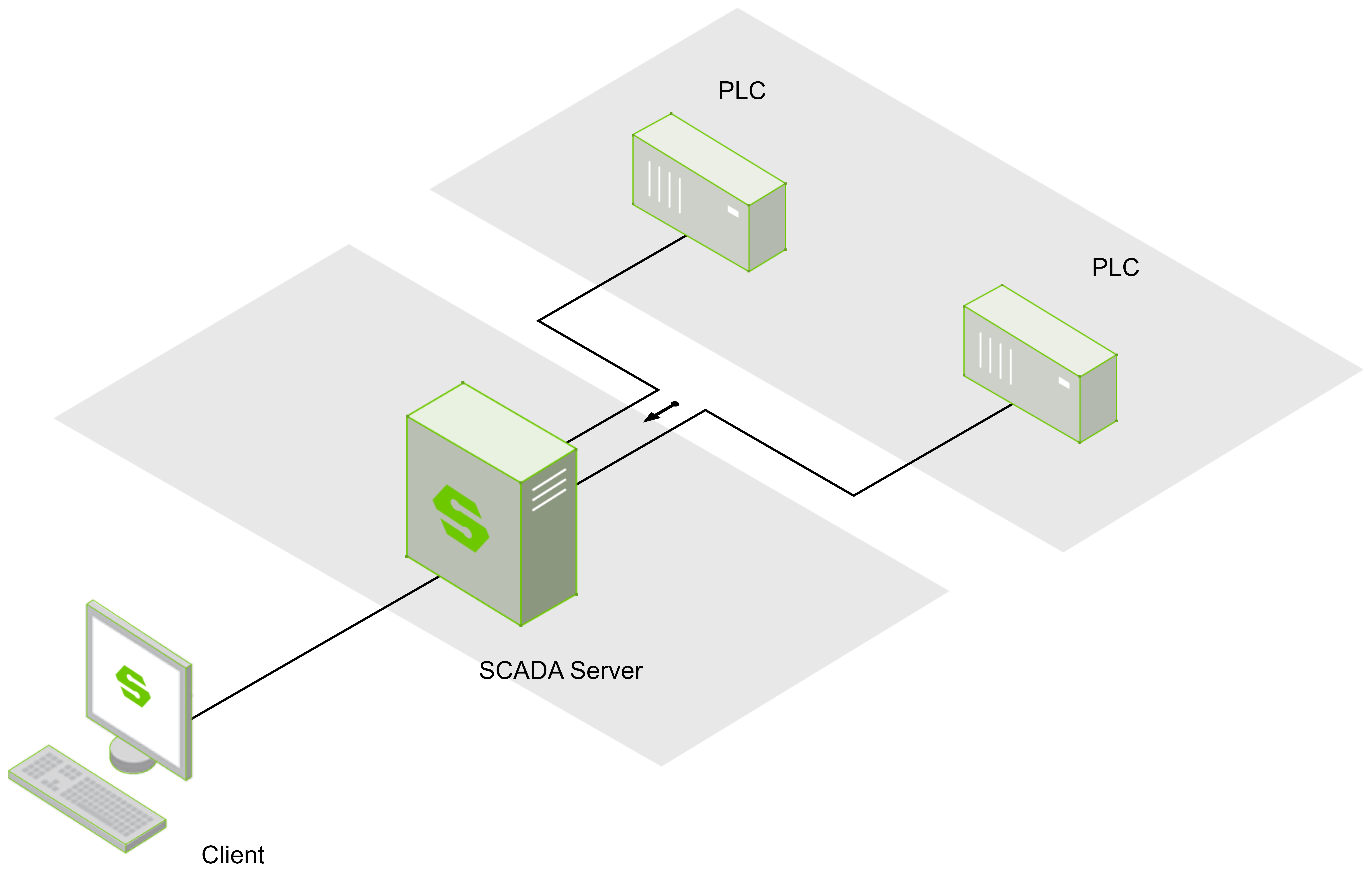

Single Server Architecture¶
| Required Authorized Modules | Quantity |
|---|---|
| Platform | 1 |
| 2D Visualization | 1 |

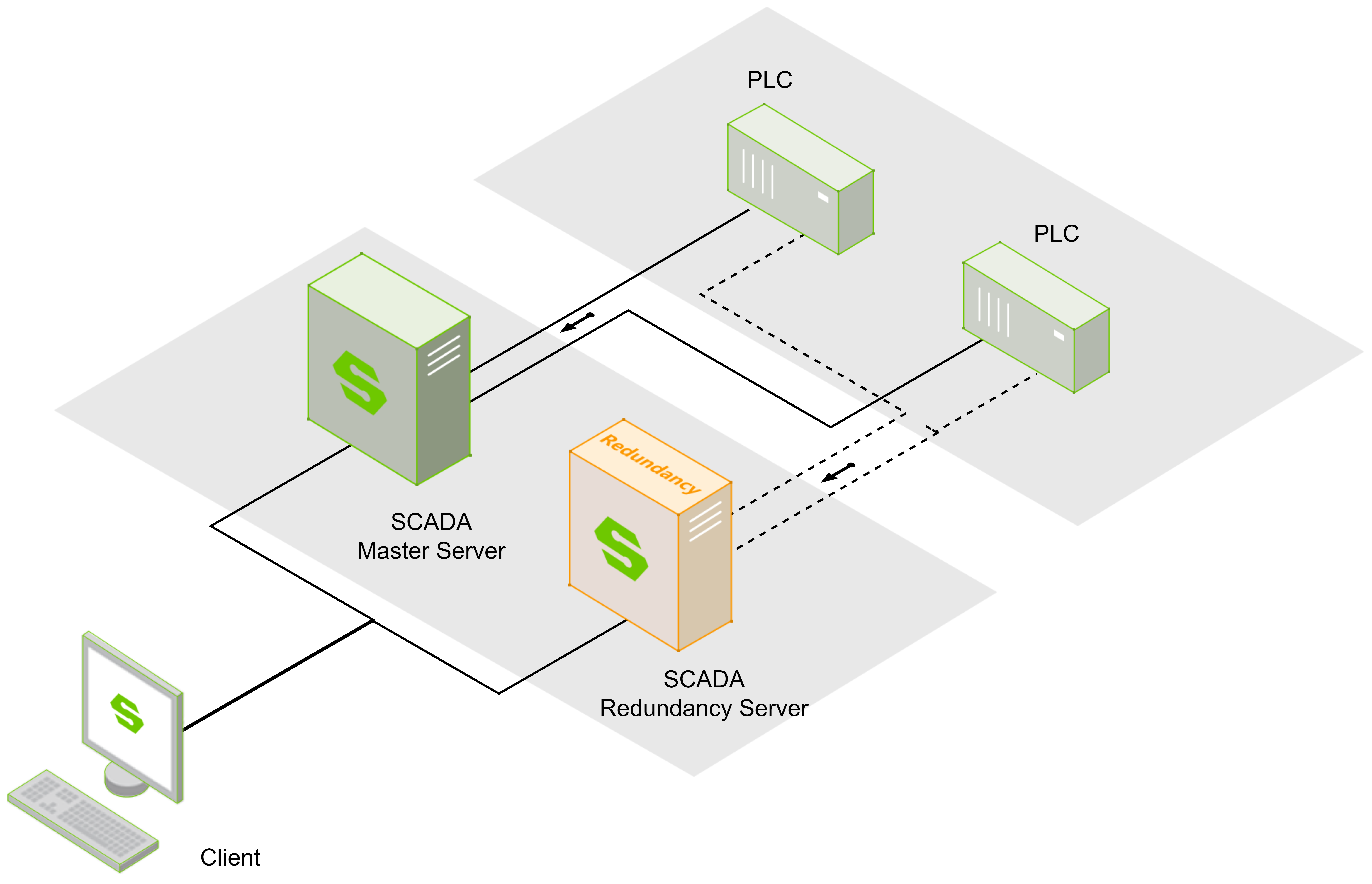

Single Server Redundant Architecture¶
| Required Authorized Modules | Quantity |
|---|---|
| Platform (with redundancy) | 1x2 |
| 2D Visualization (with redundancy) | 1x2 |

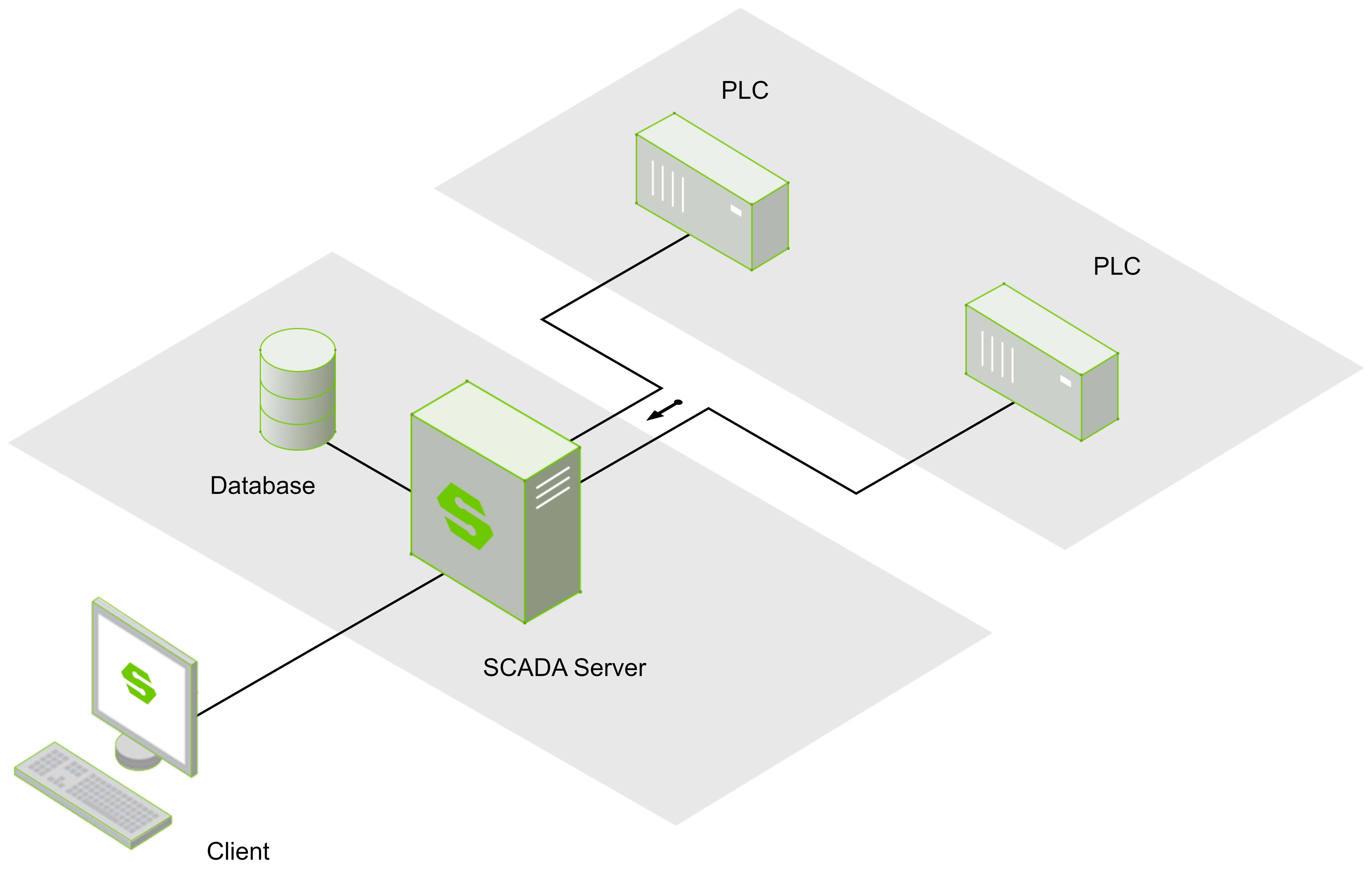

Single Server + Database Architecture¶
| Required Authorized Modules | Quantity |
|---|---|
| Platform | 1 |
| 2D Visualization | 1 |
| Database Connection | 1 |

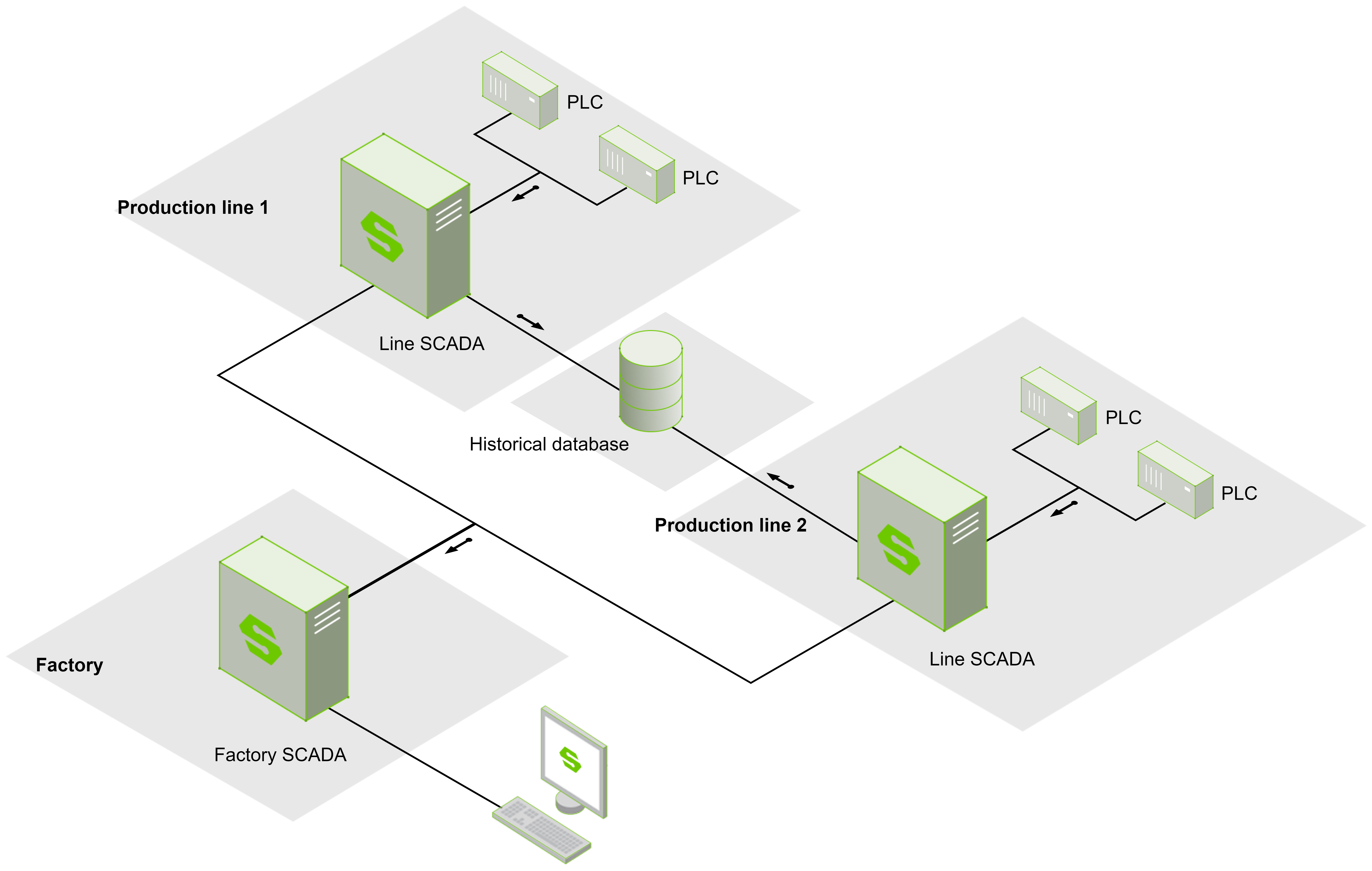

Basic Networking Architecture¶
| Required Authorized Modules | Quantity |
|---|---|
| Line 1 - Platform | 1 |
| Line 1 - Database Connection | 1 |
| Line 2 - Platform | 1 |
| Line 2 - Database Connection | 1 |
| Plant - Platform | 1 |
| Plant - 2D Visualization | 1 |

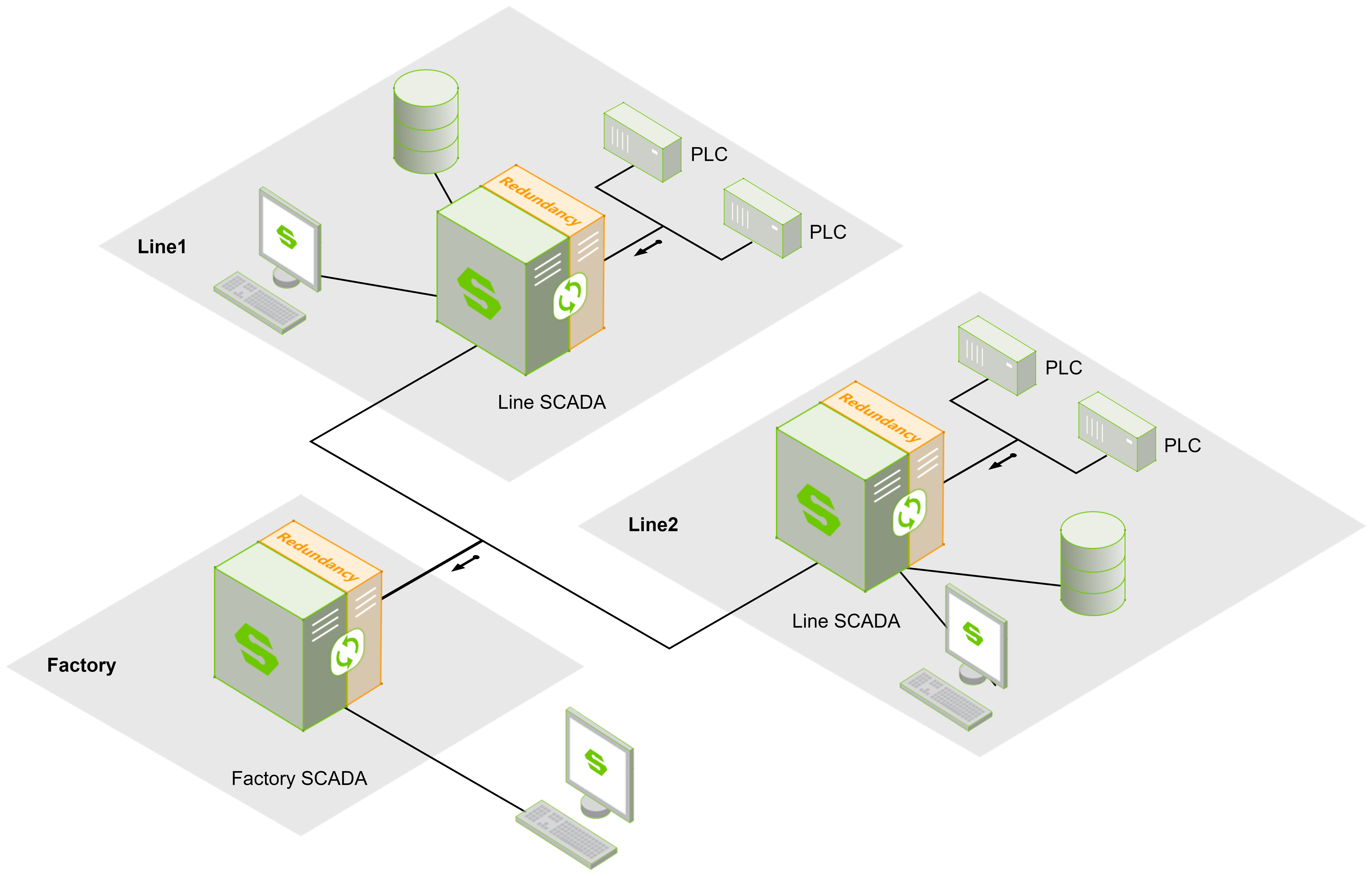

High Availability Networking Architecture¶
| Required Authorized Modules | Quantity |
|---|---|
| Line 1 - Platform (with redundancy) | 1x2 |
| Line 1 - Database Connection (with redundancy) | 1x2 |
| Line 1 - 2D Visualization (with redundancy) | 1x2 |
| Line 2 - Platform (with redundancy) | 1x2 |
| Line 2 - Database Connection (with redundancy) | 1x2 |
| Line 2 - 2D Visualization (with redundancy) | 1x2 |
| Line 2 - Database Connection (with redundancy) | 1x2 |
| Plant - Platform (with redundancy) | 1x2 |
| Plant - 2D Visualization (with redundancy) | 1x2 |
Cloud-Edge Networking Architecture¶
| Required Authorized Modules | Quantity |
|---|---|
| Site 1 - Platform | 1 |
| Site 1 - Database Connection | 1 |
| Site 1 - 2D Visualization | 1 |
| Site 2 - Platform | 1 |
| Site 2 - Database Connection | 1 |
| Site 2 - 2D Visualization | 1 |
| Cloud - Platform | 1 |
| Cloud - Database Connection | 1 |
| Cloud - 2D Visualization | 1 |
