findTextLabel

描述: 查询场景中符合条件的第一个文字标注

查询文字标注:

const view = await System.UI.findControl('3D查看器1')// 获取画面中名为“3D查看器1”的3D查看器控件
const scene = await view.getScene();
const mash = await scene.findTextLabel({
    //id:"3b013f32-d6b0-484e-835c-e63e75d30ecb", //要查询模型的唯一uuid
    name: 'text', //模糊查询名字包含text的文字标注
    //userData  用户自定义的数据内容
})
console.log(mash) //输出所有查询到的结果

示例:

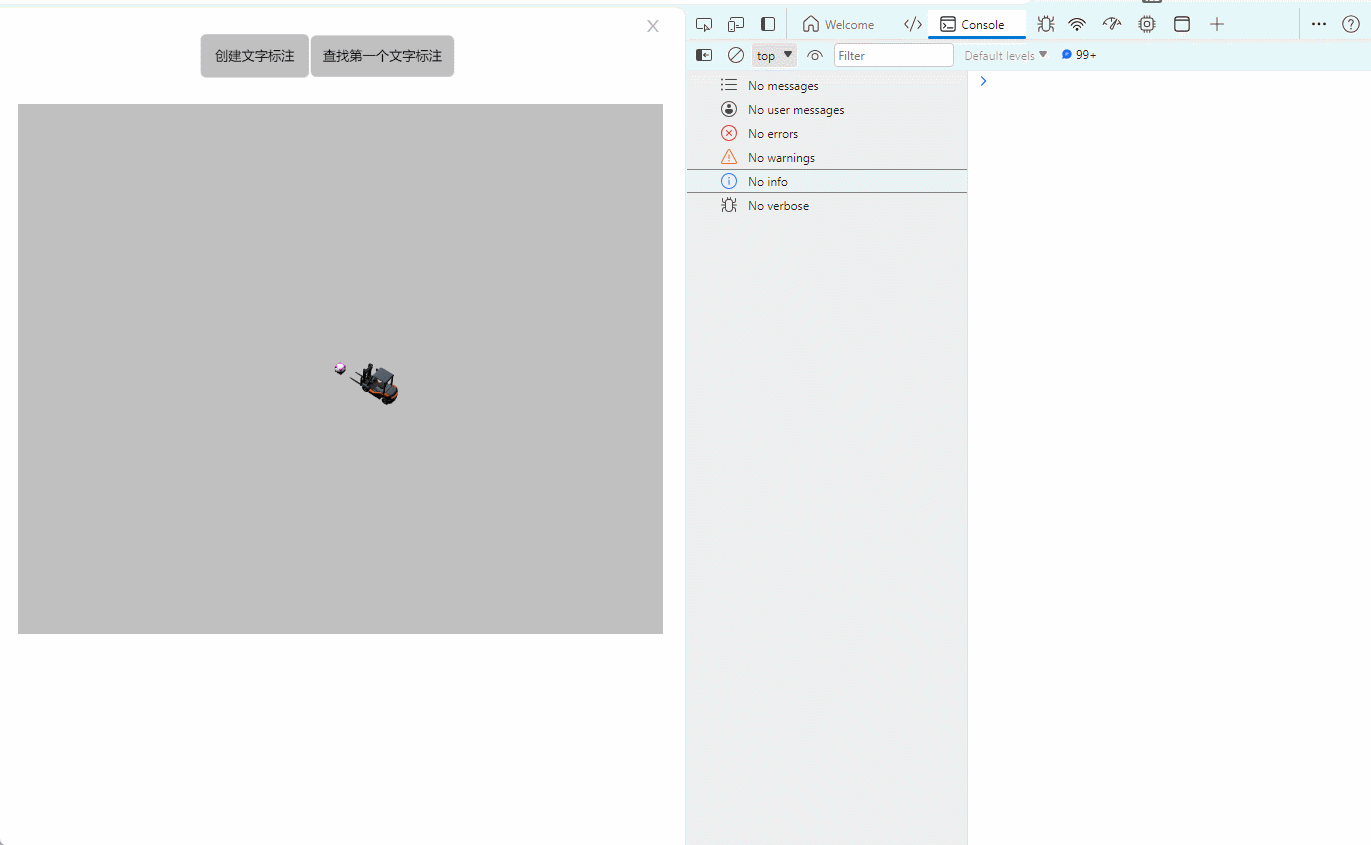

在按钮上编写上述代码,点击按钮,可以查询场景中名字包含 text 的第一个文字标注

alt text

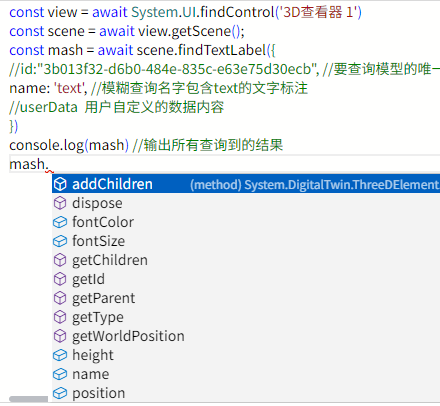

查询到的模型可以使用其所有方法和属性:

alt text
